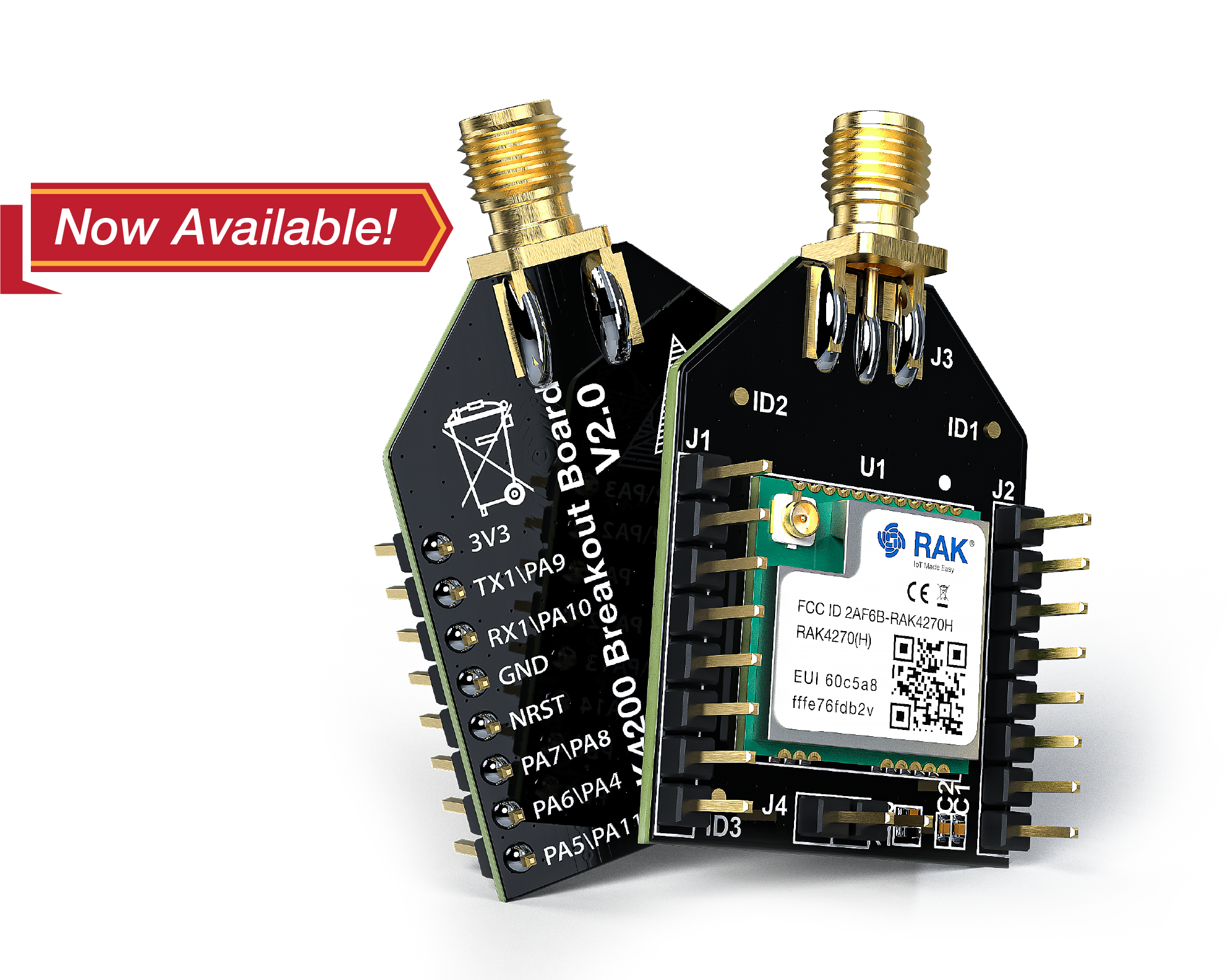

RAK4270 Breakout Board Showcase 1

RAK4270 Breakout Board LoRa® module for Smart City, Smart Agriculture, Smart Industry
  • Easily facilitate the external connection of RAK4270 pins
  • Use for low-power wireless systems with 7.8kHz to 500KHz bandwidth
  • Enjoy up to 128KB of flash memory with EEC and ARM 32-bit Cortex - M0+ with MPU as Core

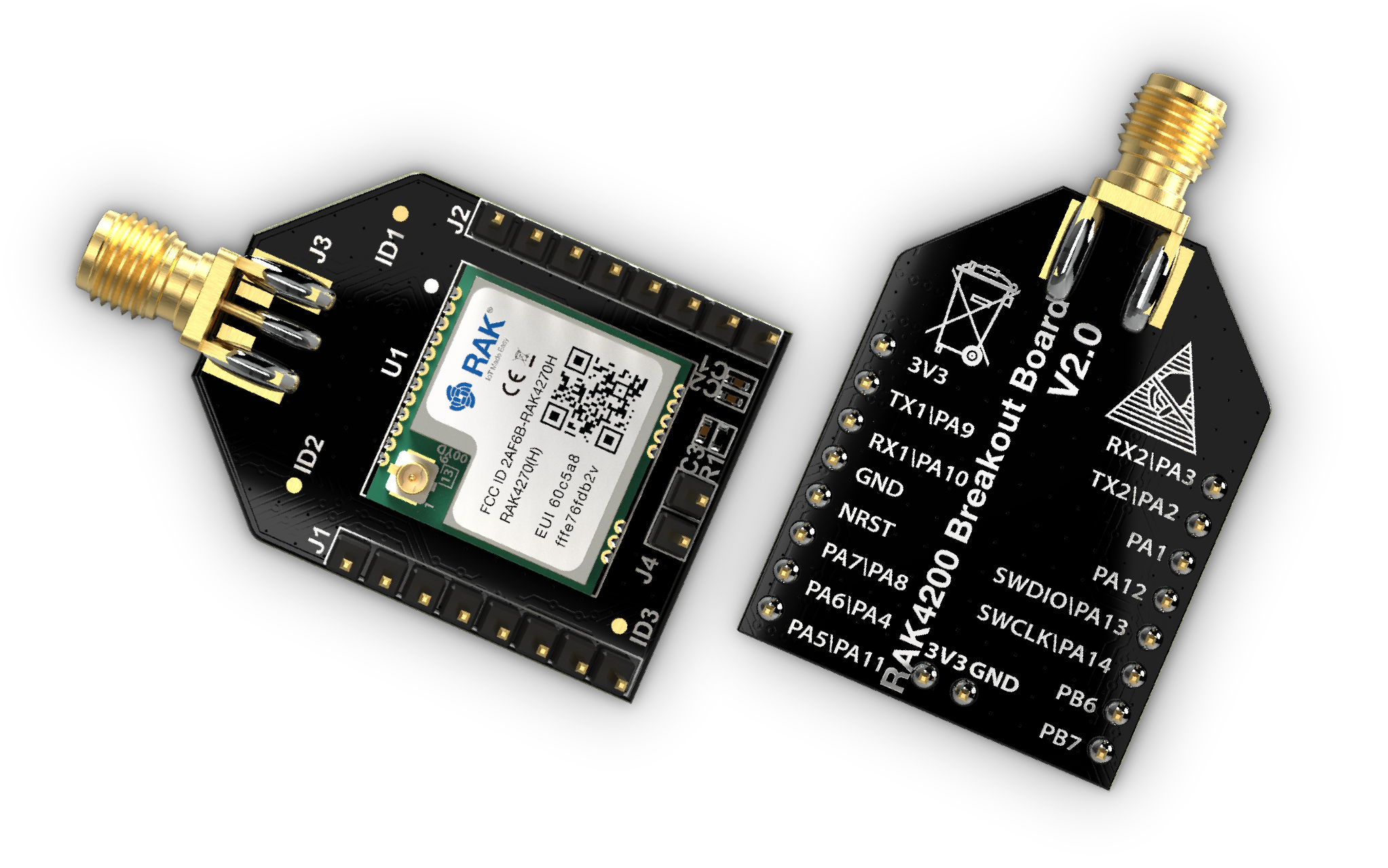

Convenient Access

RAK4270 Breakout Board is a simple board specially designed to facilitate the external connection of RAK4270 pins. It accesses the pins of the stamp module over two (2) rows of 2.54 mm headers. You can conveniently use this feature to debug the RAK4270 module!

RAK4270 Breakout Board Convenient Access

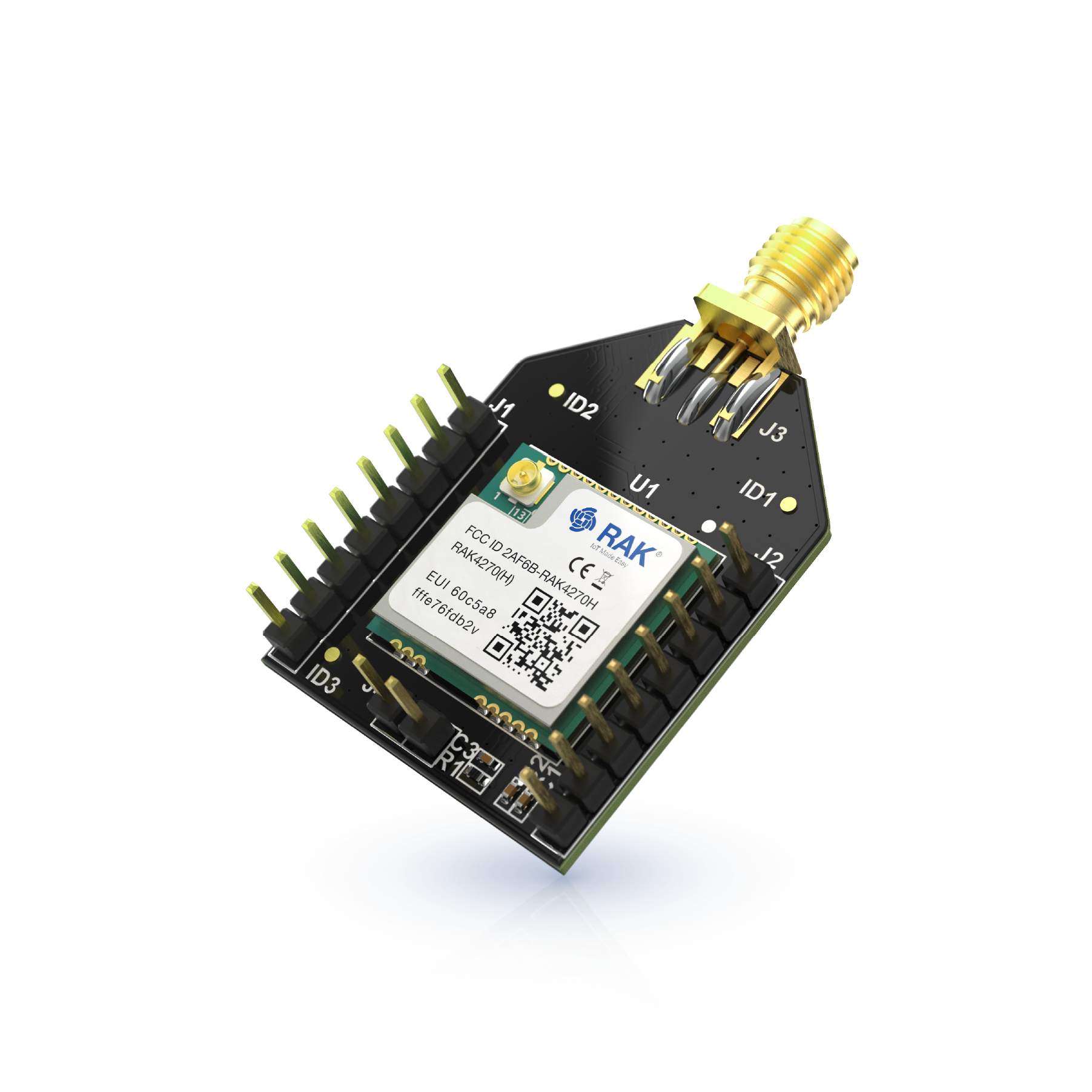

Powerful Hardware

The RAK4270 module pre-soldered to the breakout board uses an STM32L071 MCU and an SX1262 LoRa® chip, which supports eight (8) spreading factors (SF5 ~ SF12) and signal bandwidth that can be adjusted between 7.8 kHz to 500 kHz.

You can enjoy an ultra-low power consumption of 1.5uA in Sleep mode. During the transmission mode, experience a maximum output power of 22 dBm. As a receiver, it can let you achieve a sensitivity of -138 dBm.

RAK4270 Breakout Board Powerful Hardware

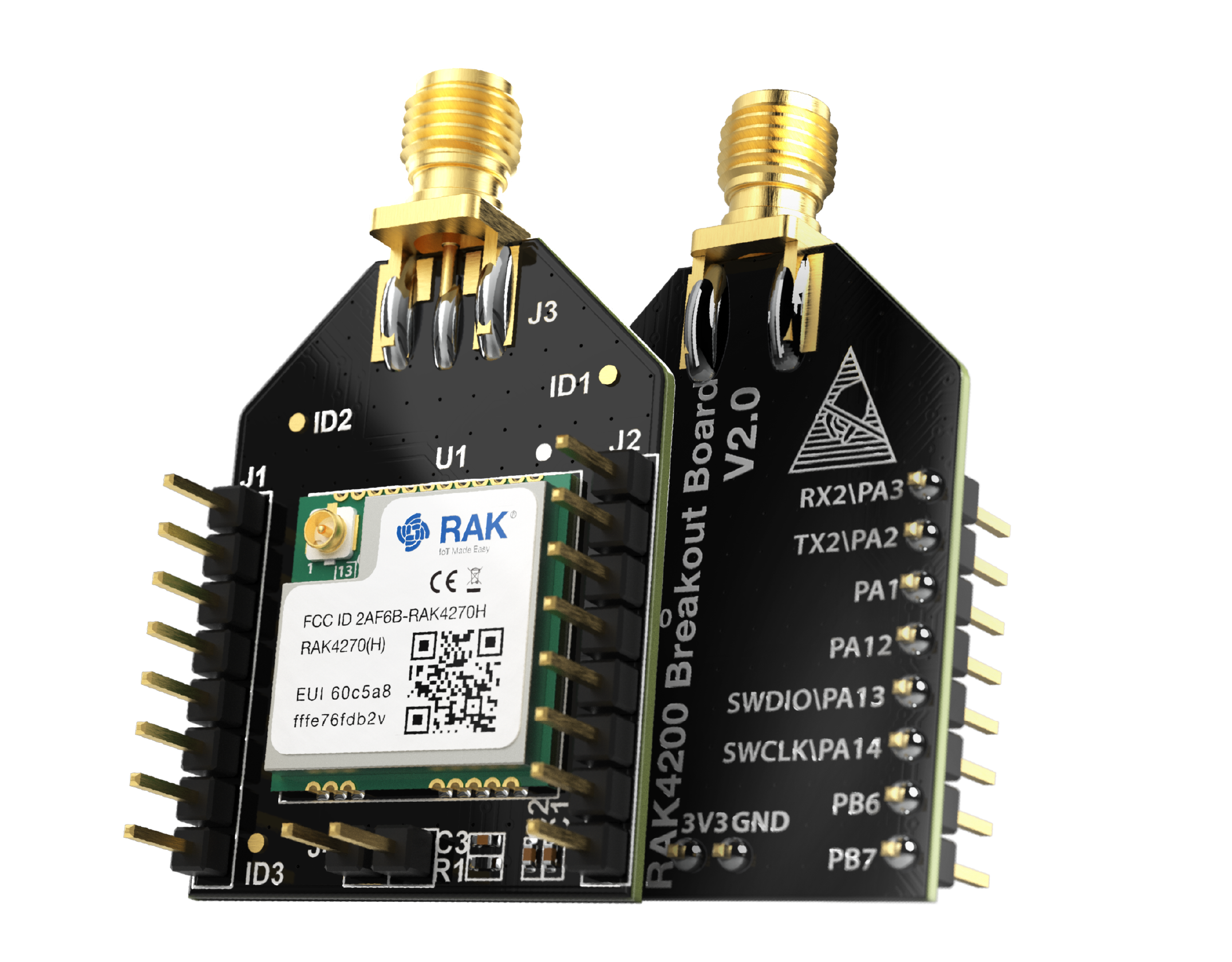

Point-to-Point Communication

The module complies with the LoRaWAN® 1.0.2 protocol, you can use it to implement LoRaWAN® networks or LoRa® point-to-point communications. The module is suitable for various applications that require long-range data acquisition and low power consumption.

Point-to-Point Icons

Point-to-Point Communication

I am ready to start a new project with RAKwireless.
