RAK5010 WisTrio Nb-IoT Tracker
Quick Development Board The RAK5010 is a tracker, which integrates LTE CAT M1 & NB1, GPS, BLE, and sensors. It is built on the Quectel BG96 LTE CAT M1 & NB1 module, which has an integrated GPS receiver. The MCU running the board is a Nordic nRF52840 controller.

Powerful Features

An Nb-IoT board with voice capabilities and onboard sensors

Motion  Sensor
Motion
Sensor

Pressure  Sensor
Pressure
Sensor

Light  Sensor
Light
Sensor

Temperature  Sensor
Temperature
Sensor

rak5010 front parts
  • Built-in humidity and temperature sensor, pressure sensor, 3-axis motion sensor, and ambient light sensor
  • Quectel BG96, with LTE CAT M1, LTE NB1 and GNSS
  • Nordic nRF52840, with BLE5.0 and long range BLE.
  • nRF52840 integrates the ultra-low power microcontroller ARM Cortex-M4 (64Mhz)
  • iPEX connectors for the LoRa and GPS antenna and an on-board ceramic antenna for the BLE.

Easy Interface

Supports nanoSIM and eSIM options

rak5010 back parts
  • nano SIM and ESIM options.
  • Can be powered by either Micro USB, 3.7V rechargeable battery or a 5V Solar Panel Port
  • Multiple interfaces, I2C, UART, GPIO, ADC

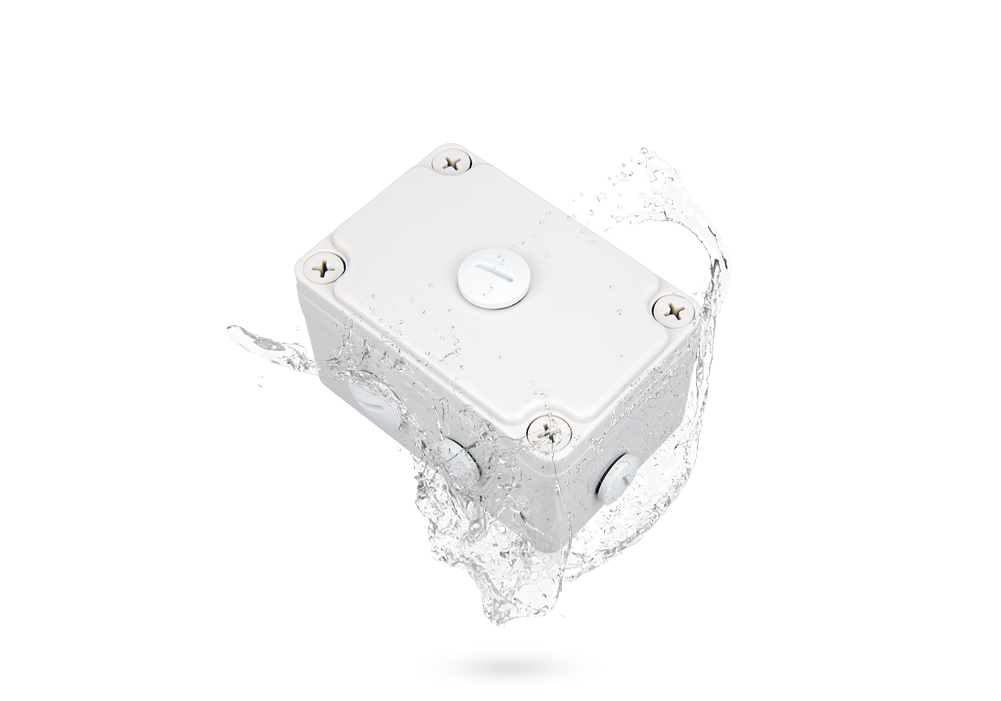

Waterproof Enclosure

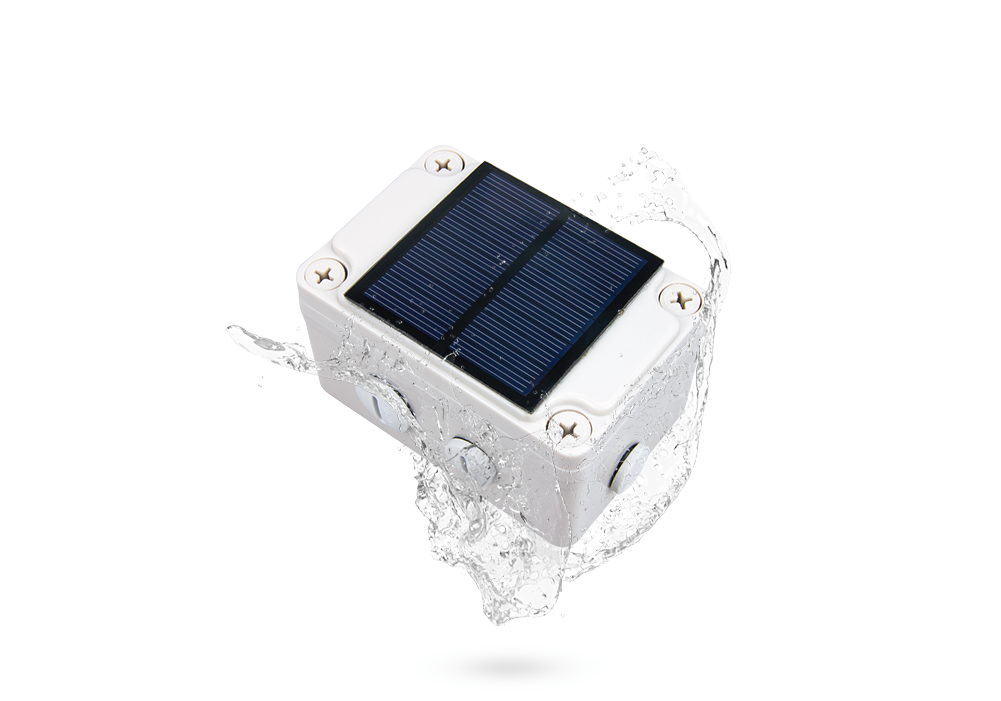

This waterproof enclosure (sold separately) is designed to fit RAK5010 and battery backup assembly. It comes in two versions: with Solar Panel, and without Solar Panel.

Model Comparison

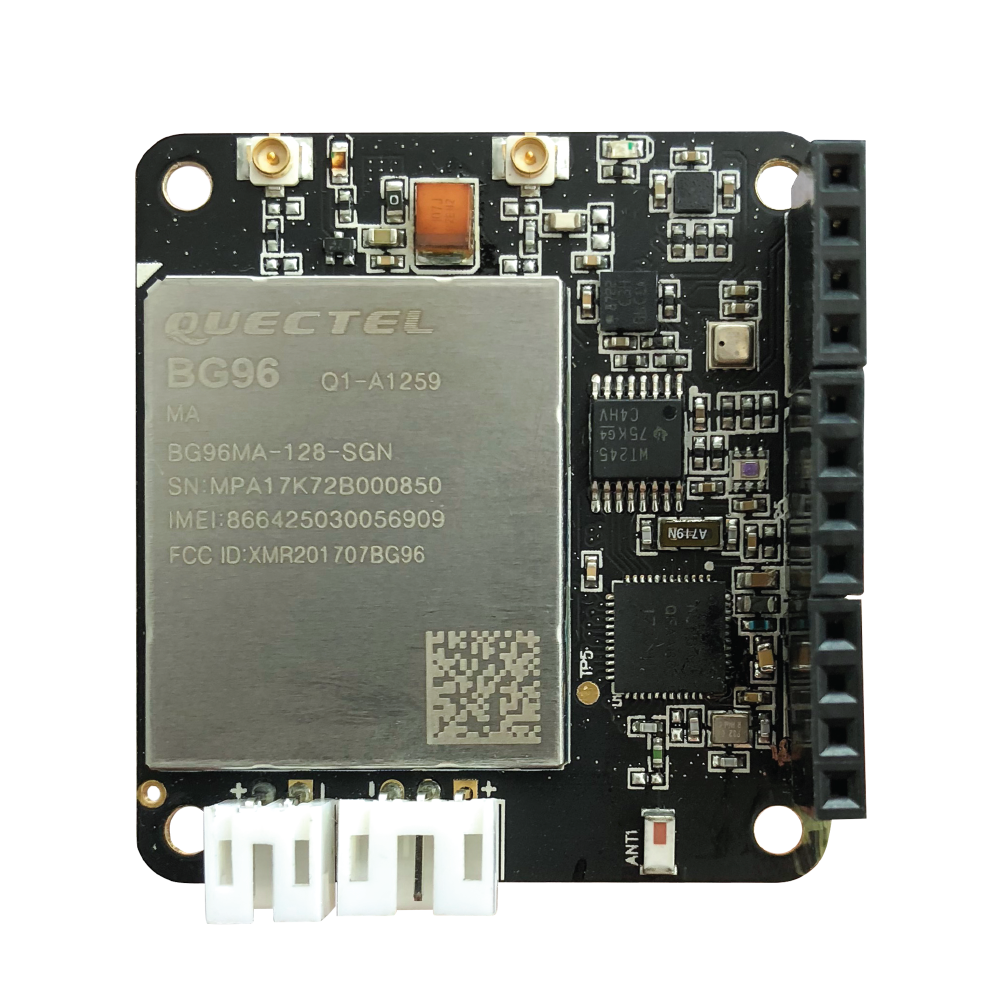

RAK8212

RAK8212

Buy Now
RAK5010 RAK8212
LTE Cat M1 / NB1
Voice-over-LTE (VoLTE)
GPS BG96 BG96
USB
UARTs 2x 1x
Antenna interfaces iPEX iPEX
Sim Slot nanoSIM/eSIM microSIM
