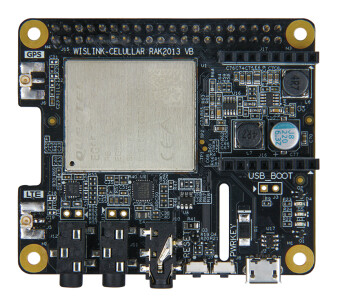

RAK2013 Cellular Pi HAT
The RAK2013 Pi HAT is a Raspberry Pi 3B+ compatible cellular communication module. It is aimed at providing a Low Power Wide Area Network (LPWAN) connectivity to IoT devices. It has several configuration options of its onboard radio including the Quectel BG96/EG95. Thus it supports the following standards: 4G/LTE, NB-IoT, CAT-M/CAT1/CAT4 Cellular. Because of its integrated audio amp and codec, it is suitable for Voice over LTE (VoLTE) in carrier network scenarios where HD calls are a requirement. The necessary connectors for each type of operation are convieniently placed on one side of the board in order to provide easy access.
RAK7205

Integration Made Easy

An NB-IoT board with voice capabilities

Main Features

  • Cellular support
    • NB-IoT
    • LTE CAT-M1
    • LTE CAT1/CAT4
  • Support for both nano and eSIM
  • Integrated audio amp and codec for full VoIP support
  • Dedicated voice and I/O headers
  • GPS optional support (BG96 only)

Model Comparison

Rak2013
Rak2011
RAK2013
RAK2011

Form Factor
Raspberry Pi
Arduino

Voice-over-LTE (VoLTE)

Audio I/O
Jack
Header

mikroBus

Antenna interface
iPEX
SMA

GPS

Sim Slot
nanoSIM / eSIM
microSIM
