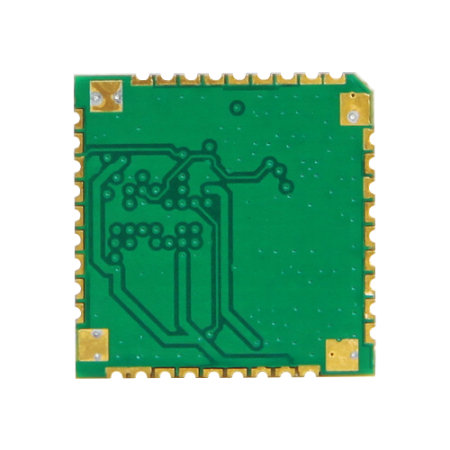

RAK4260 Showcase 2

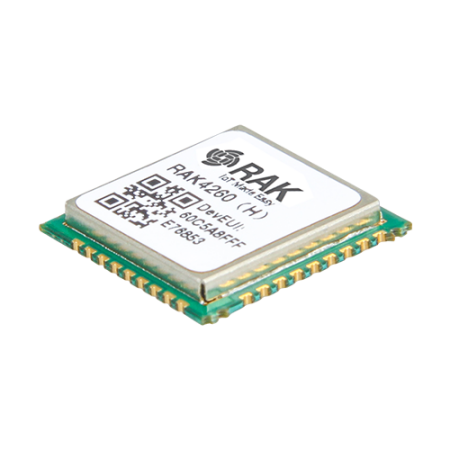

RAK4260 Showcase 3

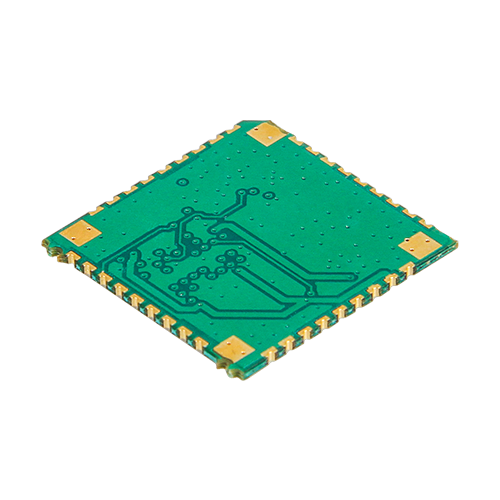

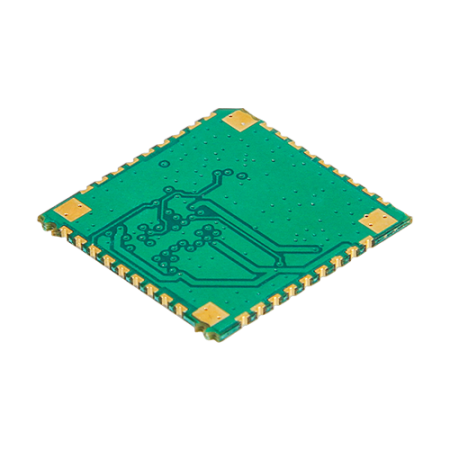

RAK4260 Showcase 4

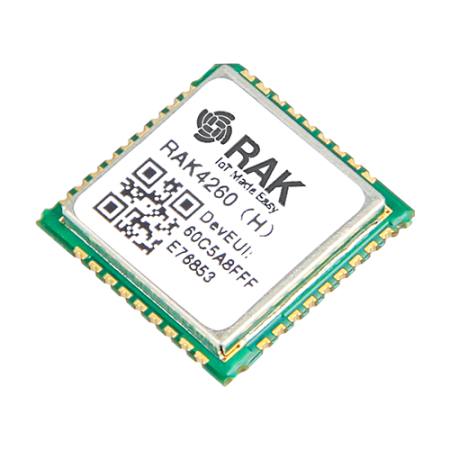

RAK4260 Showcase 5
RAK4260 WisDuo LPWAN Module
WisDuo 32-bit ARM Cortex -M0+ MCU & LoRa® Transceiver
Small size at only 15x15mm compact BGA package. It is comparatively lower prize than RAK811. A highly integrated and cost-efficient SiP.

Model: RAK4260

Small and Powerful

Small size, low power consumption, full range of interfaces, MCU+LoRa® modem

Rak4260
  • High quality Low power LoRa® device (Microchip ATSAMR34J18 SiP)
  • Fully supported 862 to 1020 MHz frequency coverage (all LoRaWAN® bands)
  • High level of accuracy and stability (32MHz TXCO)
  • Max Tx Power: 20dBm; Max Sensitivity: -148dBm; Rx Current: 17mA (typical)
  • Rich selection of interfaces: I2C, SPI, ADC, UART, GPIOs

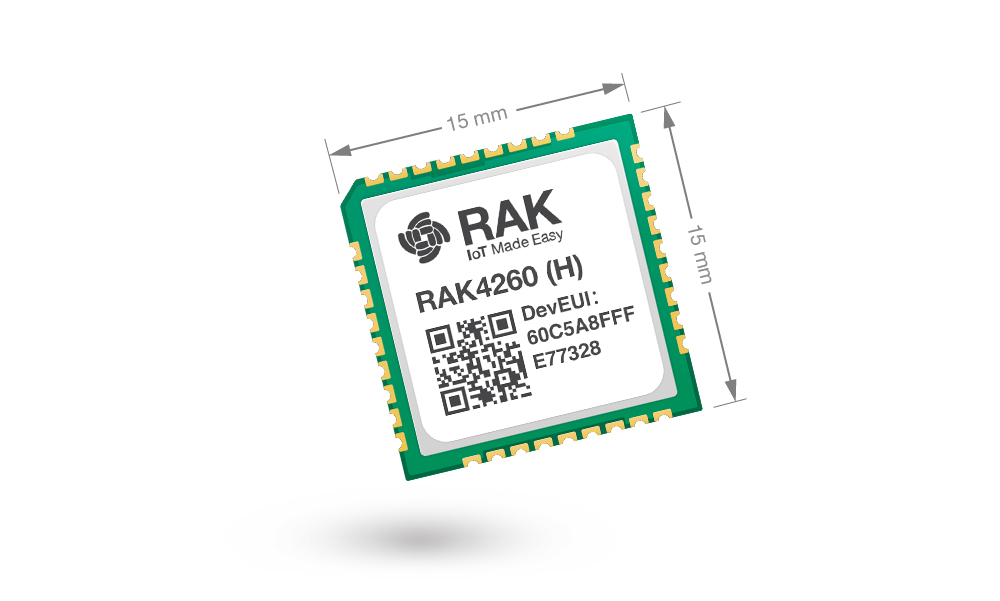

  • Small form factor: 15x15 mm compact BGA package

Model Comparison

Rak4260
Rak811

RAK4260

RAK811


Maximum Transmission Power
20dBm
20dBm

Sensitivity
-148dBm
-130dBm

LoRaWAN®
Full 1.0.2 spec
Full 1.0.2 spec

Size
15mm x 15mm
22mm x 14mm

Antennas ports
iPEX
SMA/iPEX
