LPWAN Concentrator Module mPCIe Edition
  • Easy Integration
  • Complete and Cost efficient LoRa® Gateway solution
  • Can be used in any embedded platform offering a free mPCIe slot with SPI connection

Precise Time Stamps

  • Ultra Slim ZOE-M8Q GPS Module chip is integrated on board.

RAK2287 card integrates one ZOE-M8Q, one SX1302 chip and two SX1250 chips which represent the core of the device. This provides the related LoRa ® modem and processing functionalities.

RAK7205

Easy Integration

  • It offers up to 10 programmable parallel demodulation paths which are 8 x SF5 - SF12 LoRa® demodulators, 8 x SF5-SF10 LoRa® demodulators, 125 / 250 / 500 kHz LoRa® demodulator and (G)FSK demodulator.
  • IIt can detect at any time, any packet in a combination of 8 different spreading factors(SF5 to SF12) and 10 channels, and demodulate up to 16 packets at any time.
  • It targets smart metering fixed networks and Internet-of-Things (IoT) application

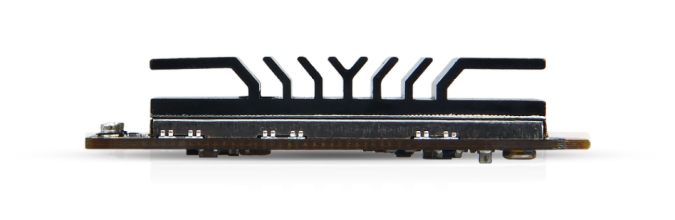

RAK2287

Compact Form-Factor

The board only weighs 9.7 grams, its length is 50.95mm while its width is 30mm. The board width, top-side and bottom-side keep-out areas and all other dimension is defined by PCI Express Mini Card Electromechanical Specification except for the card thickness (nominal value of 3.7mm).

RAK7205

Help Me Choose

Can't decided between RAK2287 or RAK2247?

Here's a quick look at their differences.

RAK2247

RAK2247

Buy Now
RAK2287 RAK2247
LoRa Baseband Chip
Supported LoRaWAN protocol 1.0.2 1.0.2
Baseband processor SX1302 SX1301
Receive Power consumption(active mode) 81.6mA(Typical) 470mA
Transmission power* 27dBm 25dBm
Receiving sensitivity* -139dBm -139dBm
ZOE-M8Q GPS Module

*Parameters are tested @ SF12, BW 125 kHz. These parameters changes in difference region to compliance with the local regulatory requirements.
