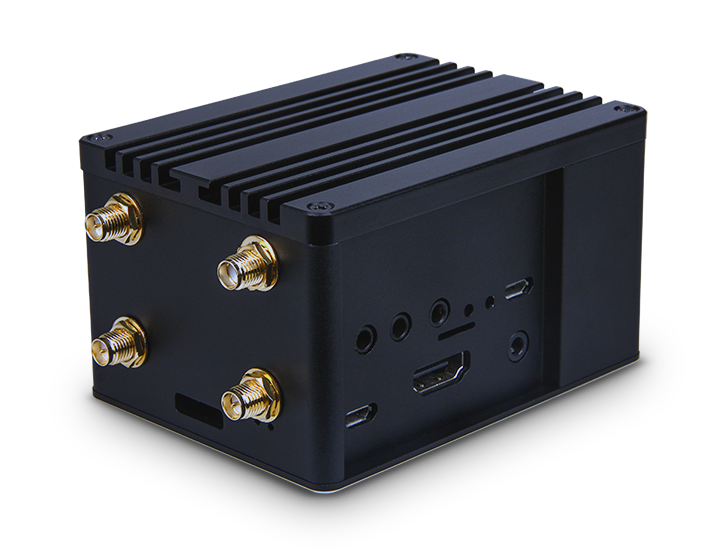

RAK7243 Showcase 1
RAK7243 Showcase 2
RAK7243 Showcase 3

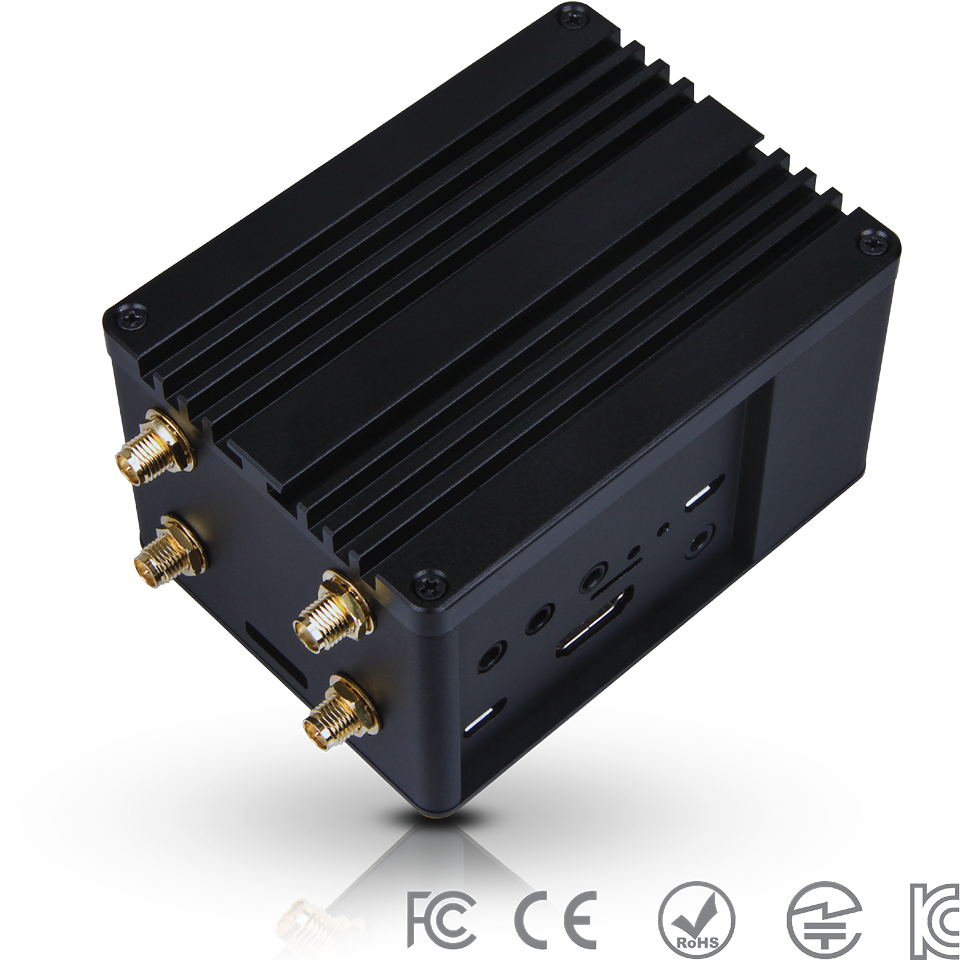

RAK7243 Showcase 4
RAK7243 LPWAN Pilot Indoor Gateway

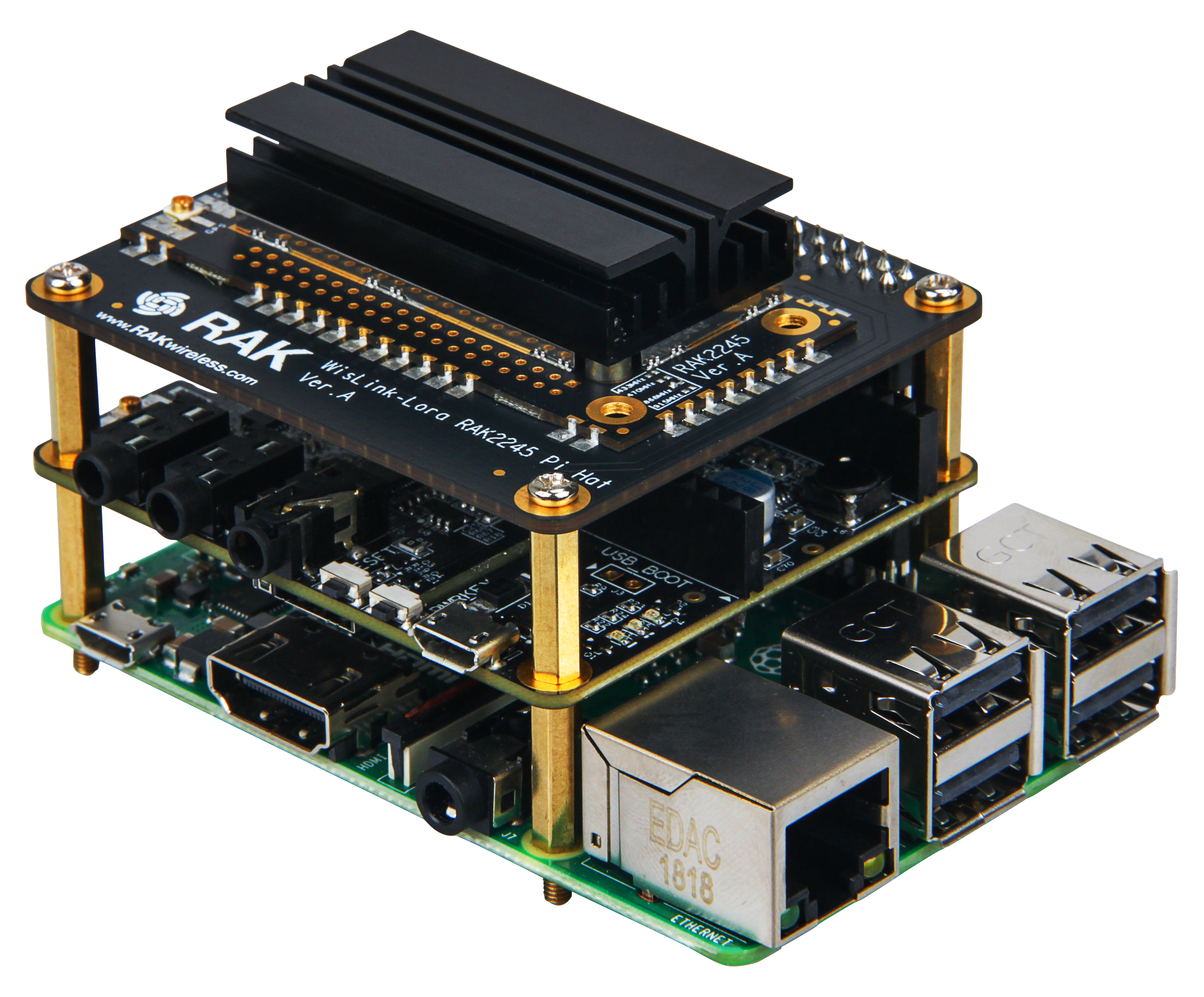

Modular Design, perfect for customization and testing. The RAK7243C is a fully-fledged 8 channel LoRaWAN® Gateway. It consists of the following modules: RAK2245, RAK2013 and Raspberry Pi 3B+. At its core is the Raspberry Pi 3B+, which integrates all the other hardware components and runs the OS. The RAK2245 is the concentrator module, playing the role of a LoRa® transceiver. The RAK2013 provides a solution that can be run on a private server or the gateway itself.
RAK7205

Integration Made Easy

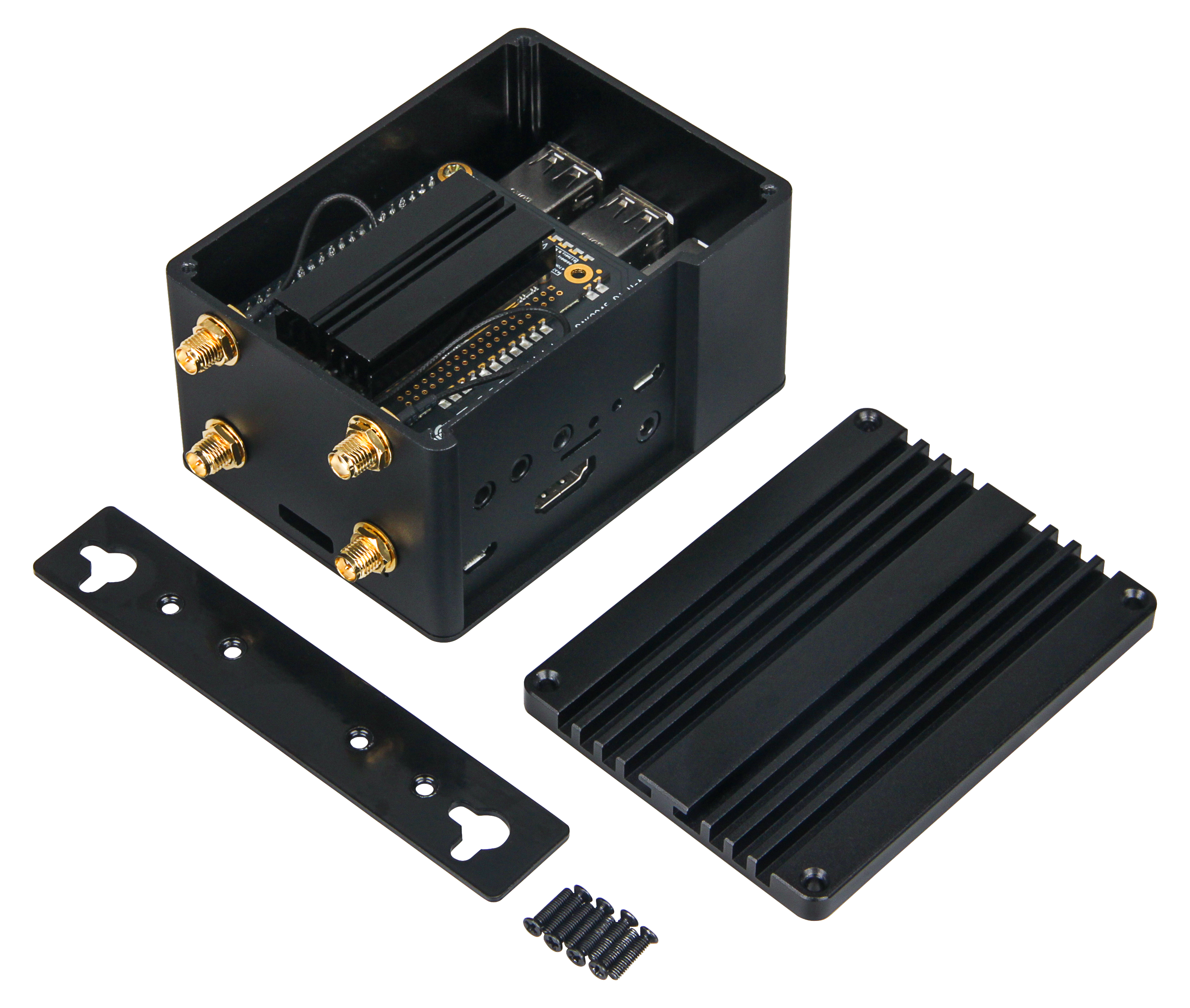

Modular design, with an open platfor at its core (Raspberry Pi 3B+)

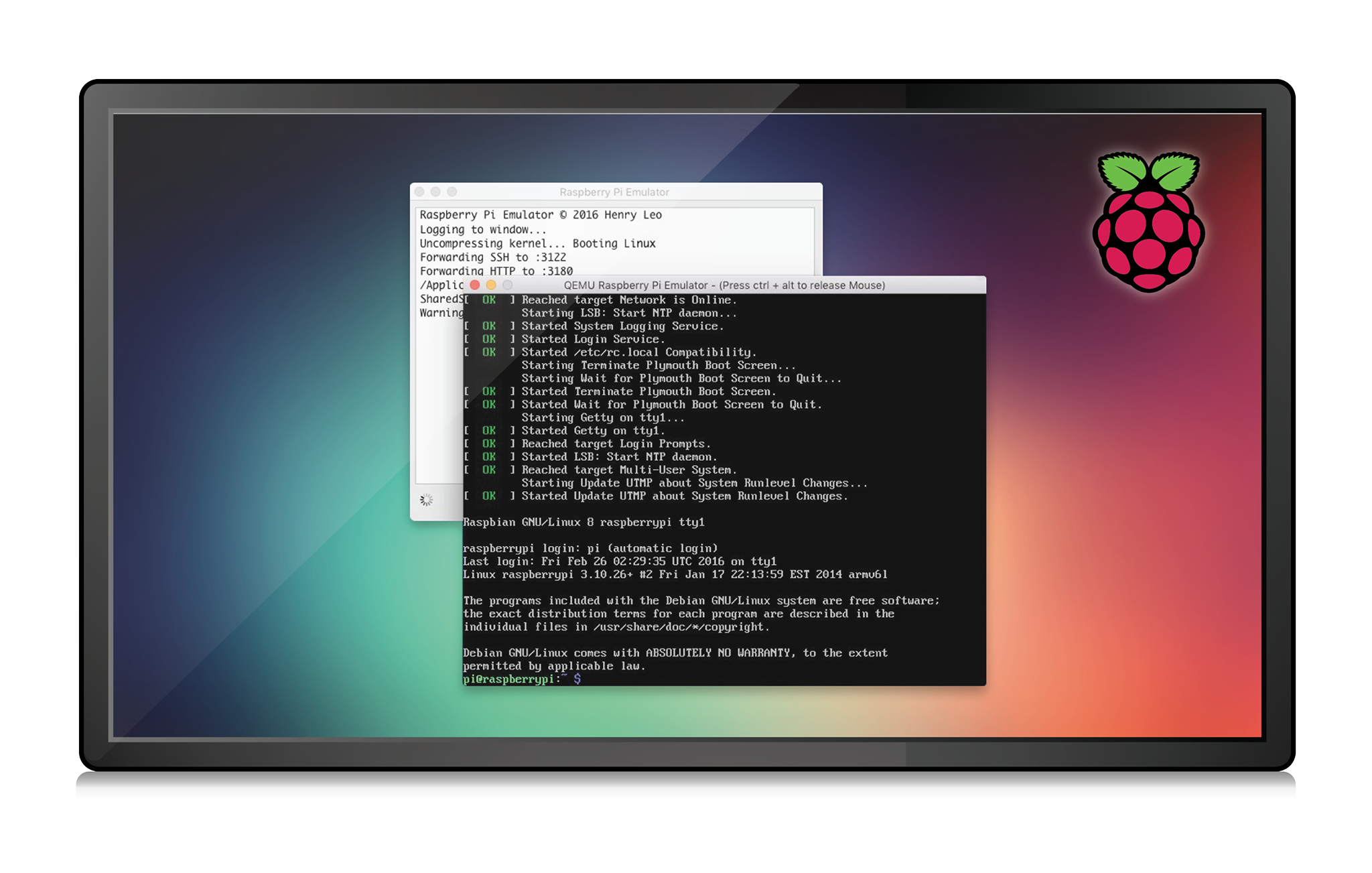

Raspbian OS

Full low-level control. Unlimited possibilities for software customization.

Mature developer community leading to better support and potential solutions.

prototype

Model Comparison


Rak7243
Rak7258

RAK7243

RAK7258


Environment
Indoor
Indoor

Fully Customizable Core

Power-over-Ethernet

Wall Mounting Kit

GPS

Web UI

Network Server

RAK7246 RAK7246G RAK7243 RAK7244
Platform Raspberry Pi Zero W Raspberry Pi Zero W Raspberry Pi 3B+ Raspberry Pi 4
LoRa® Concentrator Chip SX1308 SX1308 SX1301 SX1301
Tx Power 20dbm 20dbm 27dbm 27dbm
Rx Sensitivity -139dbm @ SF12 at 125kHz -139dbm @ SF12 at 125kHz -139dbm @ SF12 at 125kHz -139dbm @ SF12 at 125kHz
GPS N/A Ublox MAX-7Q Ublox MAX-7Q Ublox MAX-7Q
Enclosure Acrylic Acrylic Metal Metal
Cost $99 $114 $199 $212
Target Use Case Development Platform in Lab Development Platform in Lab Development and Real Deployment Development and Real Deployment
