RAK7246 LPWAN Developer Gateway
RAK7246G Showcase 1

Perfect for Prototyping

Developer-friendly due to its minimalistic design that reduces cost.

RAK7246G

RAK7246G


Full 8 uplink LoRa® channels


Raspberry Pi Zero W


Acrylic enclosure


Built-in Ublox MAX-7Q GPS module


Buy now
RAK7246

RAK7246


Full 8 uplink LoRa® channels


Raspberry Pi Zero W


Acrylic enclosure


Buy now

Watch RAK7246

Video Demonstration

Transparent Acrylic Casing

It is easy to set-up and allows for easily accessing the internals.

rak7246g-product-shot
rak7246g-product-shot
rak7246g-product-shot

Integration Made Easy

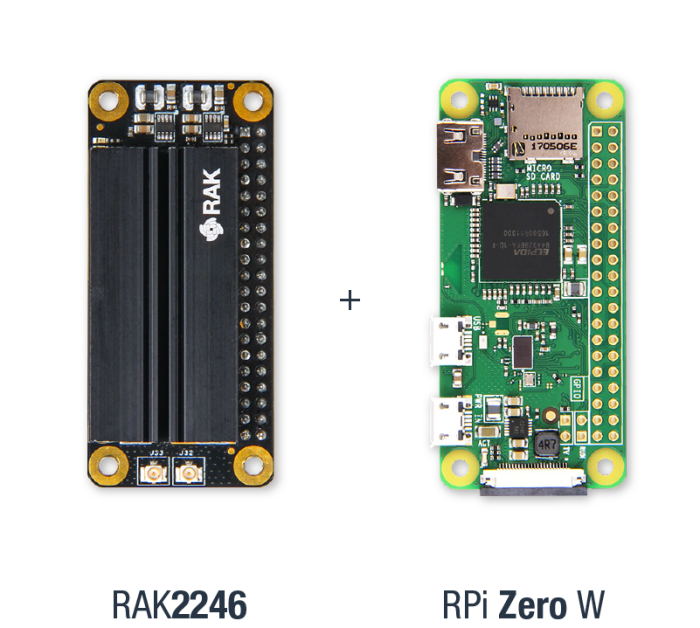

Modular design, with an open platform at its core (Raspberry Pi Zero W)

rak7246g-product-shot
  • Using SX1308 baseband processor, full 8 uplink channels and 1
  • Built-in Ublox MAX-7Q GPS module (for RAK7246G only)
  • The Pre-installed radiator guarantees a stable thermal
  • Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz
  • Covers the entirety of the LoRa® high-frequency band space:
  • Power supply 5V / 2.5A (included adapter)
RAK7246 RAK7246G RAK7243 RAK7244
Platform Raspberry Pi Zero W Raspberry Pi Zero W Raspberry Pi 3B+ Raspberry Pi 4
LoRa® Concentrator Chip SX1308 SX1308 SX1301 SX1301
Tx Power 20dbm 20dbm 27dbm 27dbm
Rx Sensitivity -139dbm @ SF12 at 125kHz -139dbm @ SF12 at 125kHz -139dbm @ SF12 at 125kHz -139dbm @ SF12 at 125kHz
GPS N/A Ublox MAX-7Q Ublox MAX-7Q Ublox MAX-7Q
Enclosure Acrylic Acrylic Metal Metal
Cost $99 $114 $199 $212
Target Use Case Development Platform in Lab Development Platform in Lab Development and Real Deployment Development and Real Deployment
