RAK7244 Showcase 1
RAK7244 Showcase 2
RAK7244 Showcase 3

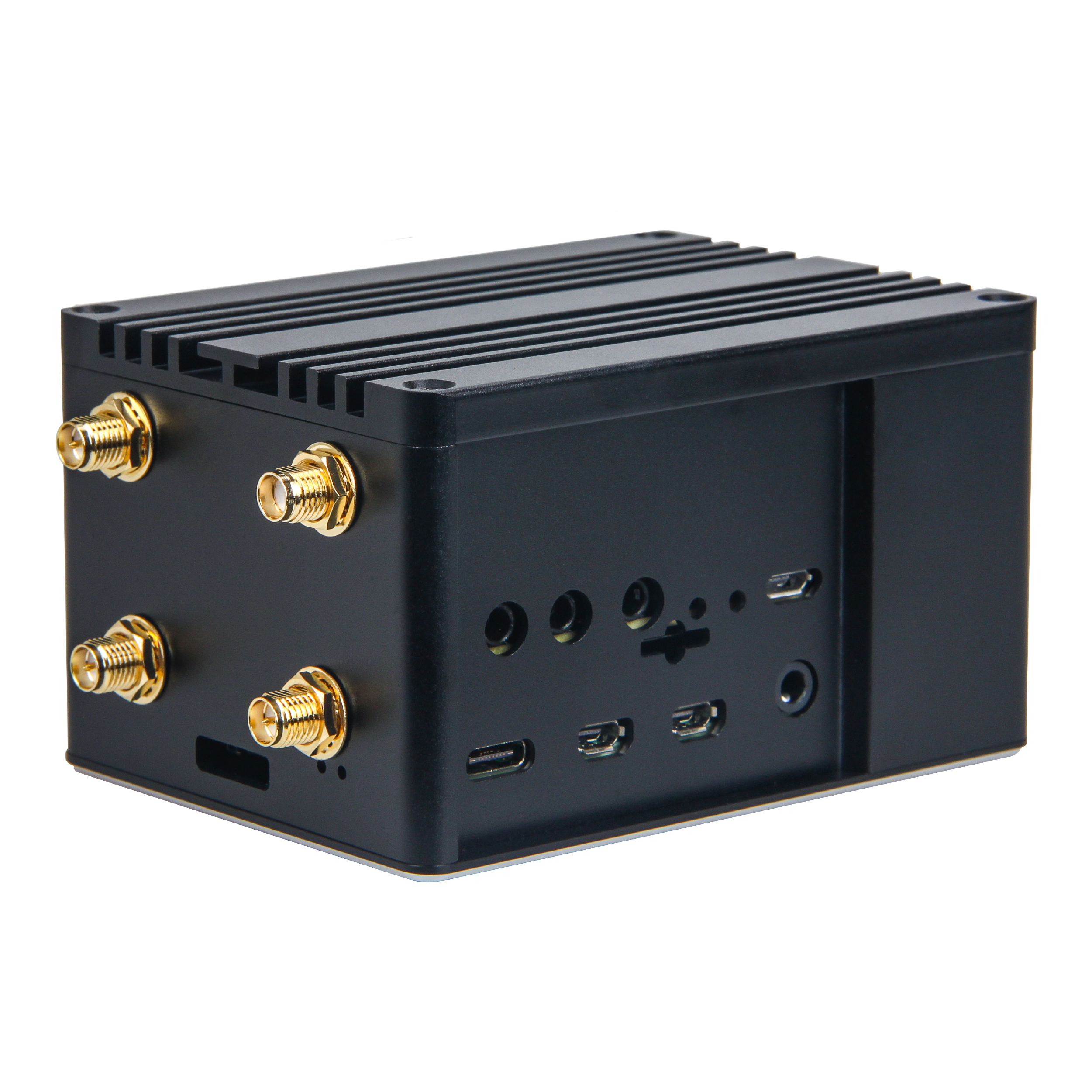

RAK7244 Developer LPWAN Gateway
Refreshed Case design with a new MCU (Raspberry Pi4) Preassembled, fully functional LoRaWAN® ™ Gateway

Sufficiently Compact

A compact form with plenty of interfaces. The RAK7244C model shown below supports LTE

RAK7244
  • Refreshed Case design with a new MCU (Raspberry Pi4)
  • Preassembled, functional LoRaWAN® ™ Gateway
  • Full LoRaWAN® ™ Stack support (version 1.0.2)
  • Up to 8 channels with SF7-SF12
  • Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz,920MHz, 923MHz
  • Tx Power: 27dBm Max
  • RX Sensitivity: -139dBm
  • Integrates Ublox MAX-7Q GPS module
  • Quectel EG95 LTE module

Integration Made Easy

Modular design, with an open platform at its core (Raspberry Pi 4)

RAK7244

Raspbian OS

Full low-level control. Unlimited possibilities for software customization.

Mature developer community leading to better support and potential solutions.

prototype

Model Comparison

RAK7253

RAK7253

Buy Now
RAK7244 RAK7253
MCU Raspberry Pi 4 Raspberry Pi 3
Display Port 2x Micro HDMI (4K Support) 1x HDMI RPi Display
Environment Indoor Indoor
Wall Mounting Kit
GPS
Web UI
Network Server
