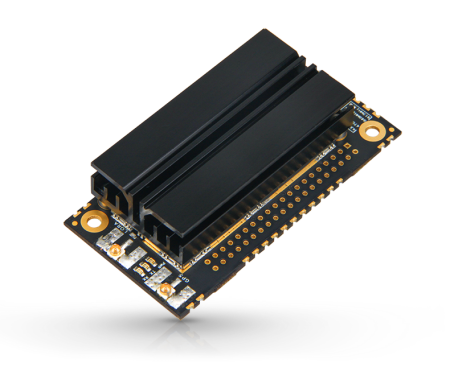

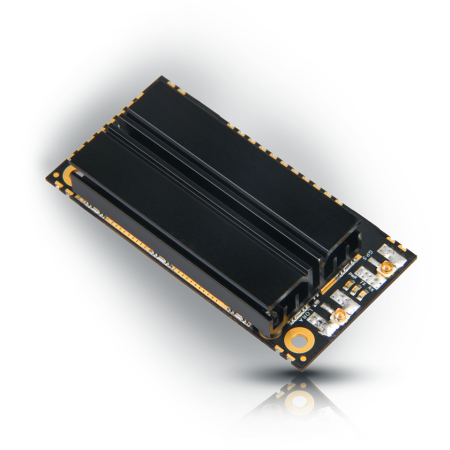

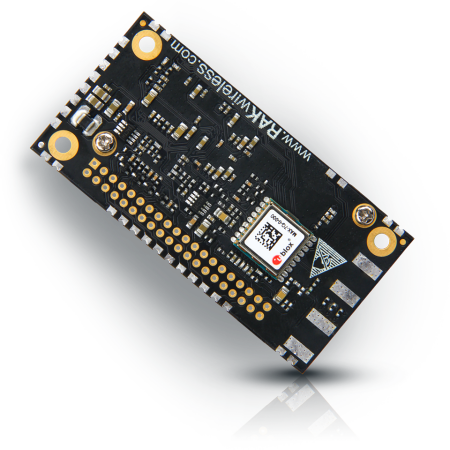

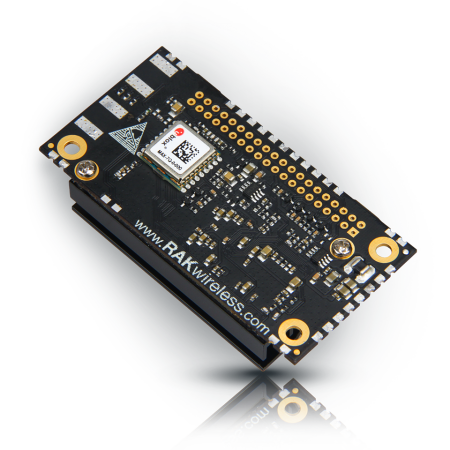

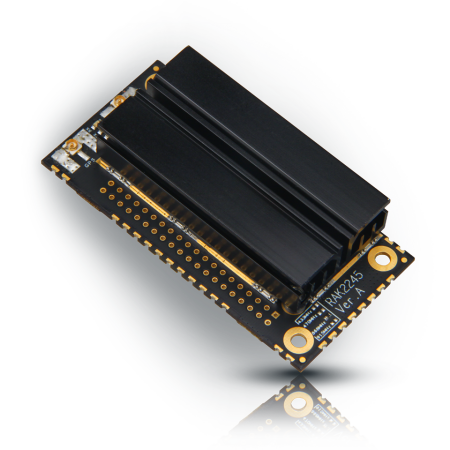

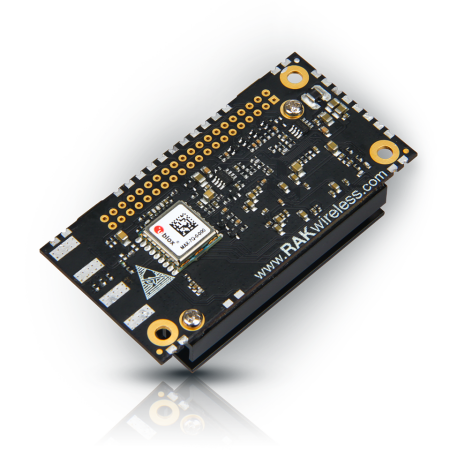

RAK2245Stamp Edition LoRa Gateway Concentrator Module
LoRa Concentrator with minimized size and cost RAK2245 Stamp Edition is the smallest of the RAK2245 Family. It has the lowest price. However, it retains its high-quality build and RF performance. This makes it suitable for rapid prototyping and size constraint applications.

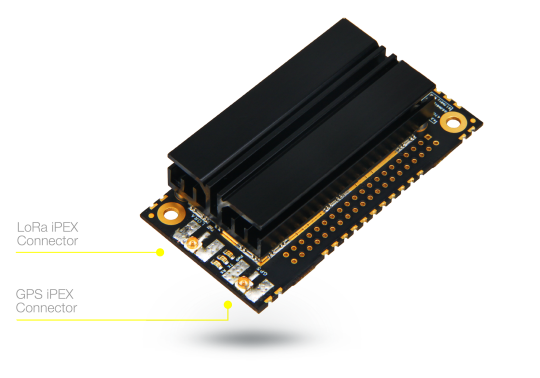

RAK2247 Stamp Edition Connectors

Integration Made Easy

The RAK2245 Stamp Edition is a complete and cost efficient LoRa Gateway Solution that will help you get started in developing a full LoRa System. The module can be easily integrated into a system's main board, providing LoRaWAN functionality.

RAK2245 Stamp Edition

Improved Specifications

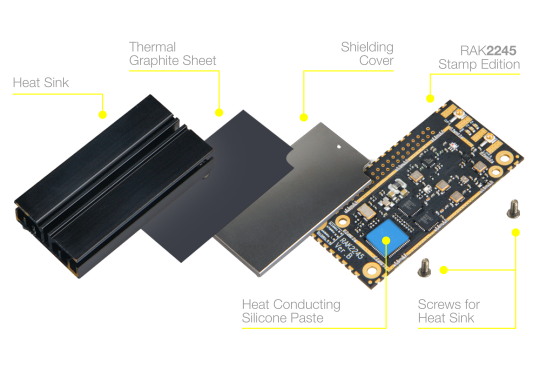

This LoRaWAN Concentrator supports eight channels and is available for all LoRaWAN global frequency bands. This super compact module measures just 60mm x 30mm x 14.9mm. It comes with a built-in GPS chip and mounted heat-sink in order to improve thermal performance.

Model Comparison

Rak2245 Stamp Edition
Rak2245 96Boards Edition
RAK2245 Stamp Edition
RAK2245 96Boards Edition

Form Factor
Stamp
96Boards

Maximum Transmission Power
27 dBm
27 dBm

Interference Resistance Boost
Yes
Yes

GPS
Yes
Yes

Heat Sink
Yes
Yes

Antennas included
No
Yes
